JCBOARD IR Technology--K Series




  • Model K84
    Ratio 4:03
    Touch Technology Infrared Touch
    Interface USB2.0 or USB3.0
    External size 1722¡Á1241¡Á38mm
    Active area (mm) 1606.5¡Á1126.5mm
    Package size 182*9*134cm
    Net weight 16.5kg
    Gross weight 24kg
    Performance
    Resolution(Interpolation) 32767*32767
    Linearity Error 1.5mm
    Responsible time 8ms
    Response Speed <20ms
    Input Method Finger, teaching point, or opaque objects
    Touch Times Unlimited
    Touch Activation Force No minimum touch activation force is required with IR touch technology
    Minimum Touch Object 5mm
    Environmental
    Temperature Operating: -20¡ãC ~ 70¡ãC , Storage: -40¡ãC ~ 85¡ãC
    Relative Humidity Operating: 90%(noncondensing at max 40¡ãC), Storage: 90%(noncondensing at max 40¡ãC)
    Altitude Up to 7,000m
    Life Time At least 7-year
    Electrical
    Operation Voltage Typical +DC 5V, +4.75V to +5.25V
    Power Supply USB, power ripple max.200mV rms
    Power <2W, operating current<200mA
    Agency Approvals CE, FCC Class B,RoHS
    Accessories
    Wall mount brackets 8
    Installation guide 1
    Extension USB cable 5 m for standard
    IWB Pen without ink 3
    CD with the software 1
    Teaching point optional
  • Model

    Model£ºK84


    Size£º1722X1241X38£¨mm)N.W£º16.5kgG.W£º20kg
    Technical Specification£º

    Working Tempurature£º-10¡æ~50¡æ

    Working Humidity£º30-80%

    Projection size£º1536.5X1126.5(mm)

    Gain£ºYes

    View angle£º170¡æ

    Whiteboard Surface£ºAluminum, Ceramic, XPS

    Technical Specification£º

    Touch technology£ºInfrared touch

    Touch method£ºFinger, pen or any opaque object

    Power£ºUSB power supplyOperating

    voltage£ºDC4.6V - DC5V

    Power£º2W

    operating current<200mA

    Interface£ºUSB2.0£»USB3.0USB

    cables£º5m

    Cusor speed£º12M/S

    Anti light intensity£ºcan be used under sun

    Transferring rate£º25ms for the first point and 8ms for continuous points

    Cusor speed£º180 point/S

    Resoluction£º4096X4096Aspect

    Ratio£º4£º3

    Accessories£º

    Wall mount £º8pcs

    Installation User Guide£º1pcs

    USB cables£º1pcs

    Pens£º3pcs

    Software CD£º1pcs

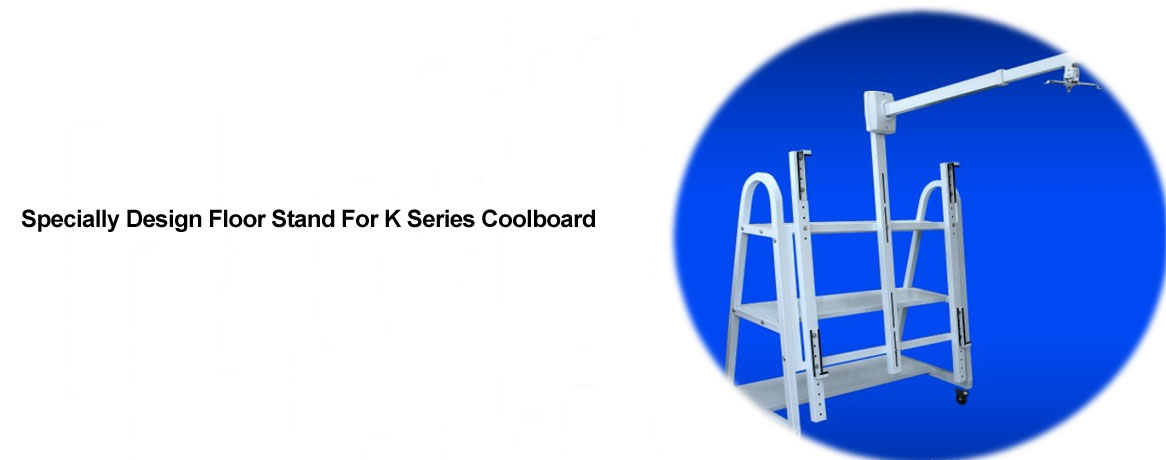

    Mobile stand£ºOptional

    Windows£º XP , Vista , Win7 , Win8 , Windows10,  Linux , Mac OSX 10.5
    Warranty£º 3 years
    Approval£º
